Monocrystalline Solar Panel 40W

20.00


Product Description

SR Portables Monocrystalline Solar Panel 40W is an ultra-portable, high efficiency and a long lasting portable solar panel. The panel is weather resistant and includes a bypass diode that minimises power drop in low light/shade and requires zero maintenance.

These portable foldable panels can be carried anywhere easily to generator solar power anywhere, anytime. They can be stored for extended periods of time and are easily deployed when solar power is required during outdoor excursions, vacations or during emergency backup power. It can be hung on a tent, tree, backpack, or just lay it flat on the ground after expansion to start generating solar power.

This eco-friendly, foldable, efficient and easy-to-use solar panel comes with a cable, junction box and warranty card (10yrs).

  • High Efficiency and Durability – Made with PET (for higher transmission efficiency), EVA resin encapsulation (for better protection of modules) and weather resistant film The panel has IPX4 rating and can operate in temperatures of -30C to 75C.
  • Portable and Lightweight – Easy to carry 7kg and perfectly suited for outdoors. It is 34cm x 23cm x 4.2cm folded and 98cm x 34cm x 0.6cm opened.
  • Waterproof – Made with PVC waterproof cloth.
  • Power: 40W – 18V and 2A Max. with 10 power output warranty
  • Quality Components – Panels are made of Polycrystalline and ultra-clear tempered glasses that does not break easily and gives >19.5% higher efficiency even in low light and cloudy weather
  • Designed in Australia – With warranty card, IP X4 rated junction box, and MC4 compatible cable connector for higher module efficiency

Category:

Description


Features:


Portable and light-weight (1.7kgs)
High efficiency (40W – 18 V 2A Max output) and well-suited for outdoor usage
Safe and durable
Waterproof
Eco-friendly
Easy to set-up
Support simultaneous charging of devices
Rugged durability
Items Spec
Maximum Power 40.5W ± 5%
Solar Cell Type Monocrystalline
Cell Efficiency ≥19.5%
Maximum Operating Current (Imp) > 2.2A
Short Circuit Current > 2.5A
Maximum Power Voltage (Vmpp) 18V
Open Circuit Voltage (Voc) 20-21V
DC Output Connector DC5521 x1 or Other Type
IP Rating IPX4
Working Temperature -30 ℃ ~ 75 ℃

Cloth Material Camouflage PVC
Expanded Size 980x340x6mm

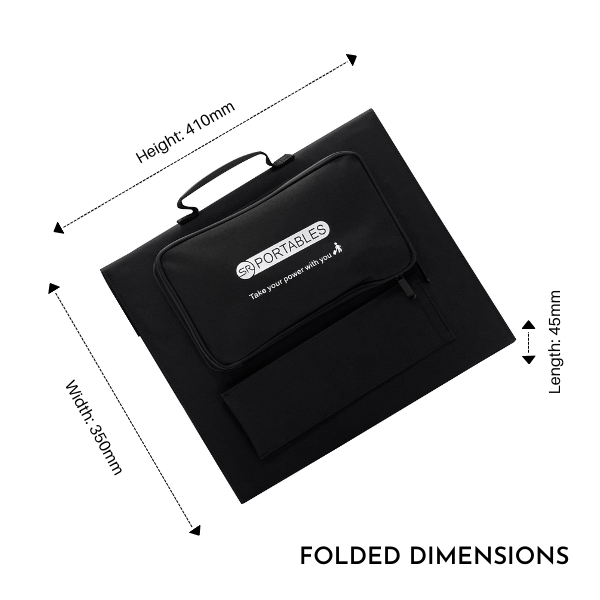

Foldable Size 230x340x42mm
Net Weight 1.7kg
★★★★★
I purchased the panels that came with Thia – 40 w. Very user friendly. It comes ready packed in an easy carry on like hand carry luggage. Simply open it and the panels are inside ready to start charging.
– Luke (2020)
★★★★★
Using camouflage solar panels that is encased in an easy to carry set. Durable and handy. Totally worth it.
– Brody (2019)
★★★★★
Light weight and well designed. I got these panels at an amazing rate. Considerably cheaper than other brands.
– Jacklyn (2018)
★★★★★
Exceptionally priced solar panels. A must buy. Roll these up and keep them in the car. Pull it out anywhere.
– Aaron (2019)
★★★★★
The solar panel and Thia kit are a wonderful duo. As a 70-year-old retiree with no experience in these mechanical things and can safely and easily use this set. Swing the panels open and attach to the machine and you are functioning on solar energy quite literally anywhere and anytime.
– Gene (2019)
★★★★
The reason I would recommend these solar panels is its durability and functionality. I have been using it for almost two years this March and these products together perform each time. While I know world over technologies are improving one thing worth noting is that these panels work well even when it’s a little gloomy. Obviously when it’s raining one cannot step out so that’s asking too much but working in slightly cloudy weather too makes it a reliable outdoor companion. It took an hour longer to charge but worked well.
– Ben (2018)
★★★★★
I keep coming back to these guys for my solar requirements. They know their stuff. New solar panel range with different designs. Buying a third time a different product this time the Thia and the solar panel set.
– Jeremy (2020)
★★★★★
40 W panels cheap and powerful!
– Ali (2019)
★★★★★
I reviewed a number of products and companies and finally opted for solar panels from SR portables. I am glad I did thorough research. There is so much out there and a lot of it is garbage. SR portables has done its homework on what I want as a customer.
– April (2019)
★★★★★
High quality and high performance. Happy with the buy.
– Jennifer (2020)

Q: Is the solar panel waterproof?
A: Yes, the solar panel is made from high-strength PET polymer laminated solar panels integrated into a rugged polyester canvas (also known as a PVC fabric), with an extremely lightweight, compact structure that provides excellent wear/weather-resistant durability.

Q: Which SR Portables Solar Generator is this panel compatible with?
A: We recommend using this panel with the Thia handheld lithium solar generator.

Q: How do you connect the solar panel to the SR Portables Thia handheld solar generator?
A: The solar panel comes with a DC cable which is a plug-n-play input into the Thia product. Simply connect the DC cable from the panel and start charging.

Q: Does the panel come with a solar charge controller?
A: This solar panels DO NOT include a Solar Charge Controller. A 10A Solar Charge Controller can be purchased separately.

Note: Always use a Solar Panel with a matching Solar Charge Controller when using with battery – attaching a panel directly to a battery is not advisable. The SR Portables Thia product has a solar charge controller ALREADY integrated in the product and a separate charge controller is not needed to charge the Thia product.

How To Charge :


What The Box Contains:


User Manual


Download our user manual for Monocrystalline Solar Panel 40W
